Examples¶

Following examples has the objective of explaining how orsaytrace works by means of interesting examples. In general, examples are explained in ascending complexity, so one can use this section as a guide to comprehend our module.

Please also check the full API documentation for detailed explanation of every implemented function. Some of them contain examples and can help you make better choice designing your optical experiment.

Pair of Lenses¶

The optical system is simply a pair of lenses with same focus $f = 2$ and clear aperture of $ap = 1.5$. We have used a perfect collimated source of $d_{src} = 2$ and distance between lenses are $d = 6$. This distance is relative to the plane sides of each lens as:

>>> a.create_thin_lens([0, 0, zlens1], focus1, 1.5, 1.43, 'convex-plane')

Creates a thin ‘convex-plane’ in which the center of the plane part is given by first position argument. If we go block by block in our simulation:

>>> a = ot.Simu(5, 5, 20, res)

Creates the simulation cell size for a given resolution. In the next line:

>>> a.d2_source(r_src, [0, 0, -9.5], [0, 0, 1], 0.0, 1)

Creates a bi-dimensional source with a radius $r_{src}$ centered at $[0, 0, -9.5]$ and with photons initially at the $[0, 0, 1]$ direction. Last two arguments are used for creating a diverging source (numerical aperture). In this case we have set divergence at $0.0$ with a single photon in this direction. After the creation of both lenses, we must create our analyses plans:

>>> for z in z_array:
>>>     a.create_analysis_plan([0, 0, 1], z)

Analyses plan are the core of orsaytrace. They bind together any photons that at any given time satisfies the plane equation:

\[a x + b y + c z = d\]

Normal vector $\vec{n} = [a, b, c]$ and $d$ comes from first and second argument of create_analysis_plan, respectively. Normal vector is not intensity sensitive, which means:

>>> a.create_analysis_plan([0, 0, 1], 1)

Will create same plan as:

>>> a.create_analysis_plan([0, 0, 2], 1)

Following, we can view our created elements using:

>>> a.show_created_elements('all-noplan')

And we can run our simulation by:

>>> photon_lists = a.run()

Simulation result is an numpy.array of shape based on the number of planes created. This is an photon_list object and has several important attributes, such as ‘.normal’ and ‘.photons’. This means that each index of this list is a photon_list and each photon_list has a ‘photons’ attribute. As we will see in the future, this class has also a ‘condition_dict’ attribute which forces the photon to have a specific property before being appended to photon_list.

Optionally, one can also plug simulation result in:

>>> a.show_elements(photon_lists, 'all-noplan')

This will produce a 3D matplot lib with all the photons and elements created for each analysis plan. Pretty hand!

Results¶

Note that after simulation is finished, we run a loop over our photon_lists object (the returned value of simulation run). As we have said, those are planes and contain convenient functions to process the whole set of photons. Just remember that each photon in photon_list.photons contains much more information, such as its position, intensity, normal vector, number of reflections, refractions etc. For the sake of clarity in this first example, we will show how to construct your own avg_divergence if you do not want to use it from our function base:

>>> photon_list.avg_divergence([0, 0, 1])

You can construct your own in your python script something like this:

import numpy

def my_own_avg_divergence(vec_ref, photon_list.photons):
    vec_ref = vec_ref / numpy.linalg.norm(vec_ref)
    vals = numpy.average([numpy.dot(photon.normal, vec_ref)**2 for photon in photon_list.photons])
    return vals

This means that, for each photon_list, we are averaging the scalar product between the photon.normal and a given reference vector. So if you have a perfect collimated source propagating in $[0, 0, 1]$ and applied this function using a $[0, 0, 1]$ reference vector, you would have a result of $1.0$ because all individual photons are propagating in this direction and the scalar product is always $=1.0$.

Other three functions are easier to understand. They calculate the average distance of the photons in xy plane for a $(x, y) = [0, 0]$ position in:

>>> photon_list.avg_distance_axis_z([0, 0])

And calculate absolute position in $3$ dimensional for:

>>> photon_list.avg_position()

If one wish to see the created elements:

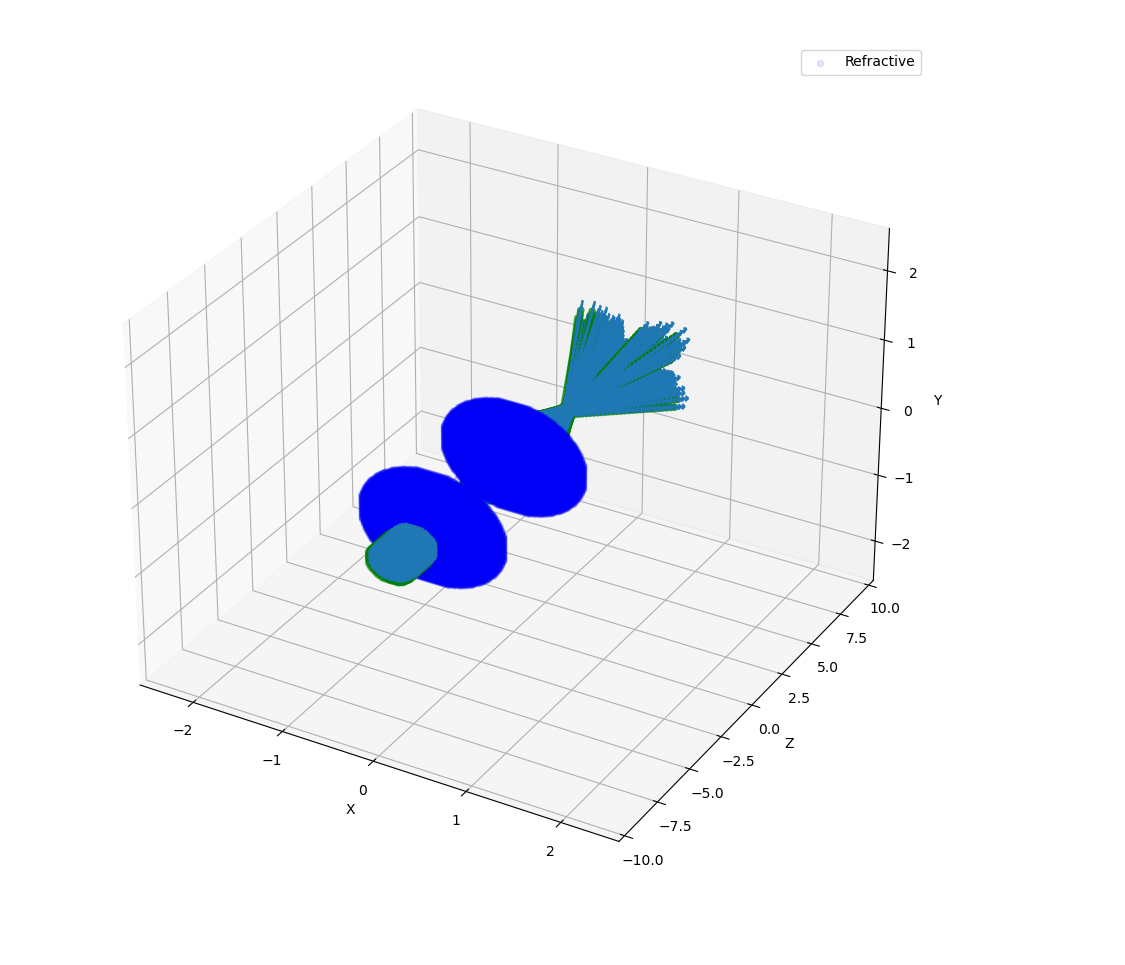

Figure 1.1: View from show_elements using a resolution of 0.02.¶

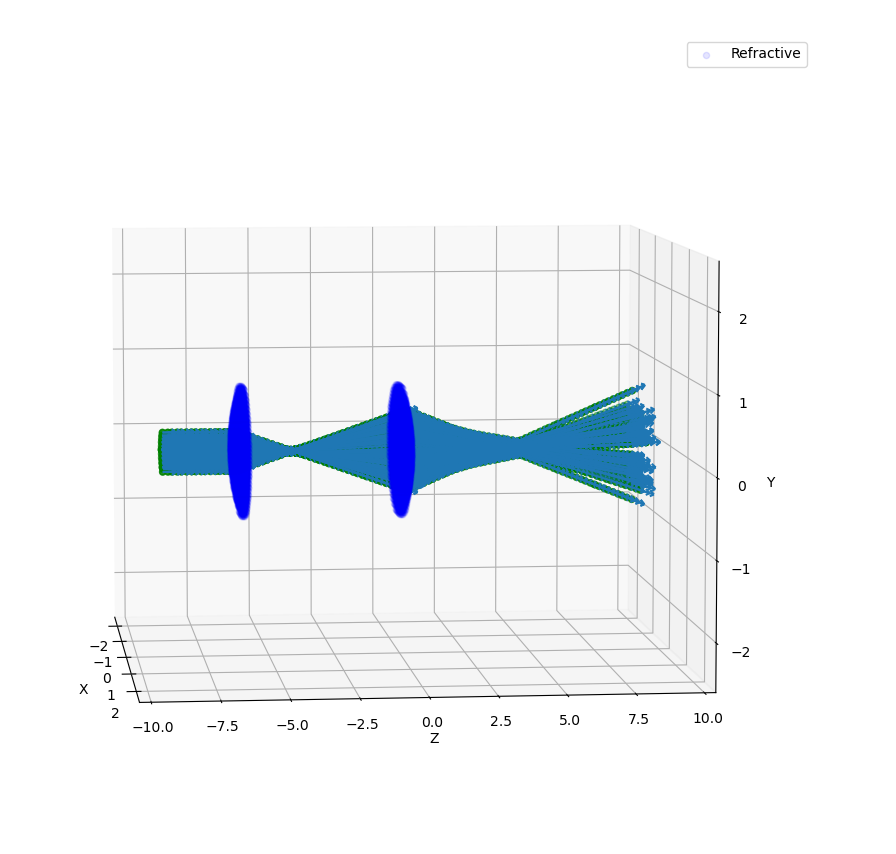

Figure 1.2: Side view from show_elements using a resolution of 0.05.¶

Figures below show quantitative results of the simulation. Look how divergence is $= 1.0$ at the beginning and reduces almost abruptly as it reaches first lens. Second lens reduces slighly beam divergence relative to $[0, 0, 1]$. In the top right, we see beam starts with a $0.15$ size and reaches a minimum during first focus. Second lens refocalizes the diverging beam of approximately $0.30$. Beam reaches a minimum and continues to diverge until simulation cell is over.

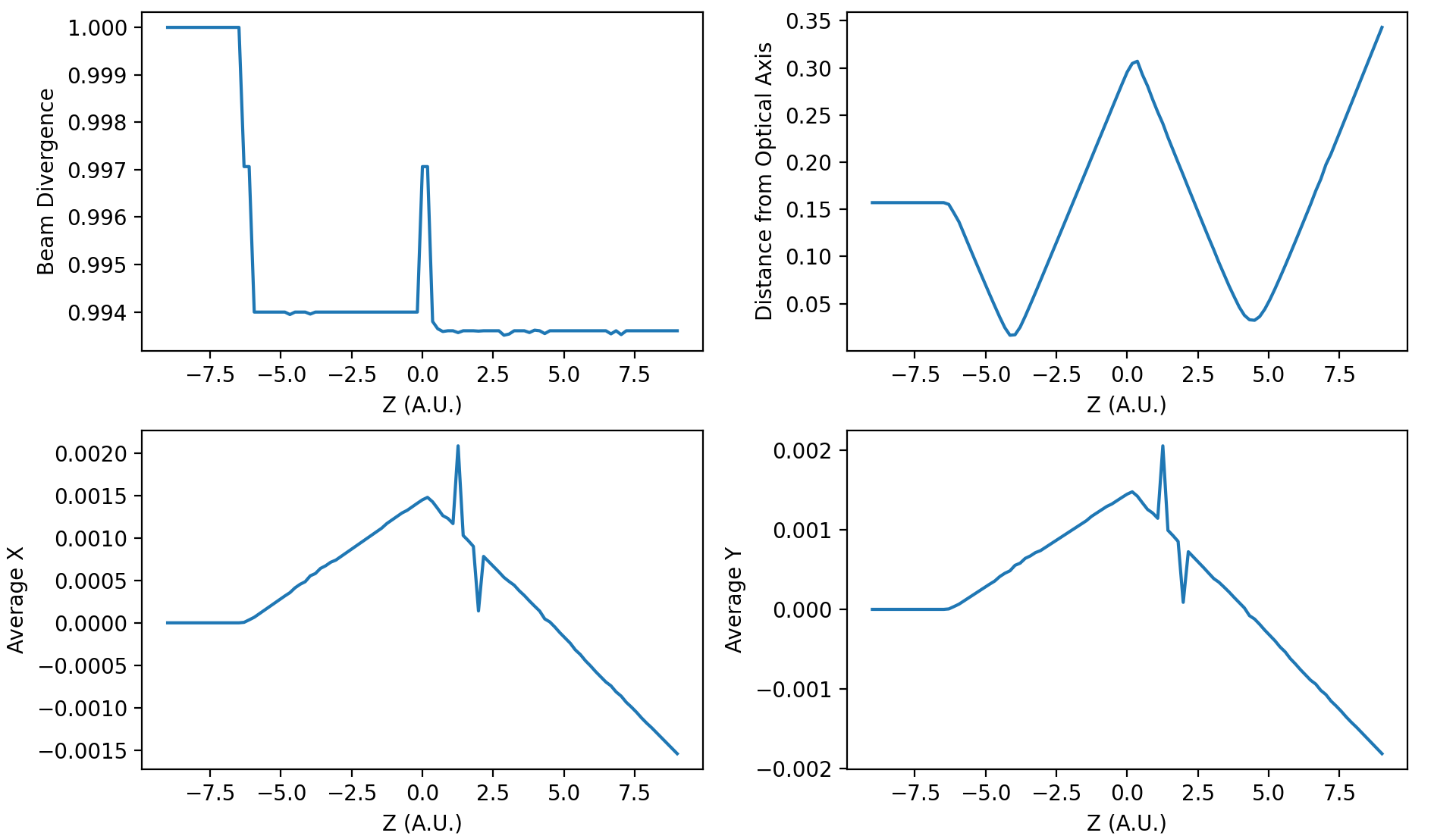

Figure 1.3: Quantitative results from a resolution of 0.02.¶

Finally, both cells at the bottom show the average distance in $X$ and $Y$. As simulation is symmetrical relative to those axis, those must be values under our resolution factor. Both are $100\times$ smaller than our resolution.

Code¶

examples01.py:

import orsaytrace.trace as ot
import numpy
import matplotlib.pyplot as plt

z_array = numpy.linspace(-9.0, 9.0, 101)
focus1 = focus2 = 2.0
zlens1 = -6.0
d12 = 6.0
res = 0.08
r_src = 0.25

a = ot.Simu(5, 5, 20, res)

a.d2_source(r_src, [0, 0, -9.5], [0, 0, 1], 0.0, 1)

a.create_thin_lens([0, 0, zlens1], focus1, 1.5, 1.43, 'convex-plane')
a.create_thin_lens([0, 0, zlens1+d12], focus2, 1.5, 1.43, 'plane-convex')

for z in z_array:
    a.create_analysis_plan([0, 0, 1], z)

a.show_created_elements('all-noplan')
photon_lists = a.run()
a.show_elements(photon_lists, 'all-noplan')

vals = numpy.asarray([])
vals_distance = numpy.asarray([])
vals_x = numpy.asarray([])
vals_y = numpy.asarray([])
for photon_list in photon_lists:
    vals = numpy.append(vals, photon_list.avg_divergence([0, 0, 1]))
    vals_distance = numpy.append(vals_distance, photon_list.avg_distance_axis_z([0, 0]))
    vals_x = numpy.append(vals_x, photon_list.avg_position()[0])
    vals_y = numpy.append(vals_y, photon_list.avg_position()[1])


fig, axes = plt.subplots(nrows=2, ncols=2, sharex=False, sharey=False, dpi=200)
axes[0, 0].plot(z_array, vals)
axes[0, 1].plot(z_array, vals_distance)
axes[1, 0].plot(z_array, vals_x)
axes[1, 1].plot(z_array, vals_y)

axes[0, 0].set_ylabel('Beam Divergence')
axes[0, 1].set_ylabel('Distance from Optical Axis')
axes[1, 0].set_ylabel('Average X')
axes[1, 1].set_ylabel('Average Y')

axes[0, 0].set_xlabel('Z (A.U.)')
axes[0, 1].set_xlabel('Z (A.U.)')
axes[1, 0].set_xlabel('Z (A.U.)')
axes[1, 1].set_xlabel('Z (A.U.)')

plt.show()

Scanning an object position¶

Second example is also pretty simple as well but has some key differences from previous one, which makes it educative on some functions. We begin by creating a point source:

>>> a.d2_source(0.0, [0, 0, -4.0], [0, 0, 1], 0.12, 11)

With $11\times11$ points between normal vectors $[0.12, 0.12, 1]$ and $[-0.12, -0.12, 1]$. A single plane-convex lens is created and $201$ planes are created along photon propagation direction $[0, 0, 1]$. Lens position is changed in $Z$ direction given by z_lens array.

Results are saved in a list called all_my_photons. Each element of this list will contain 201 plans and each plan will constain a number given of photons saved in photon_list.photons.

Results¶

Again we use a convenient functions in class photon_list called:

>>> photon_list.std_deviation()

Which returns a $3$ dimensional array of the standard deviation of position values for each given plane. We expect that standard deviation increases with the propagation of a diverging beam; stays constant for a collimated beam and reduces for a converging beam. As we change lens $Z$ position, we will match source and lens numerical aperture at a given point, producing a collimated beam with almost no divergence.

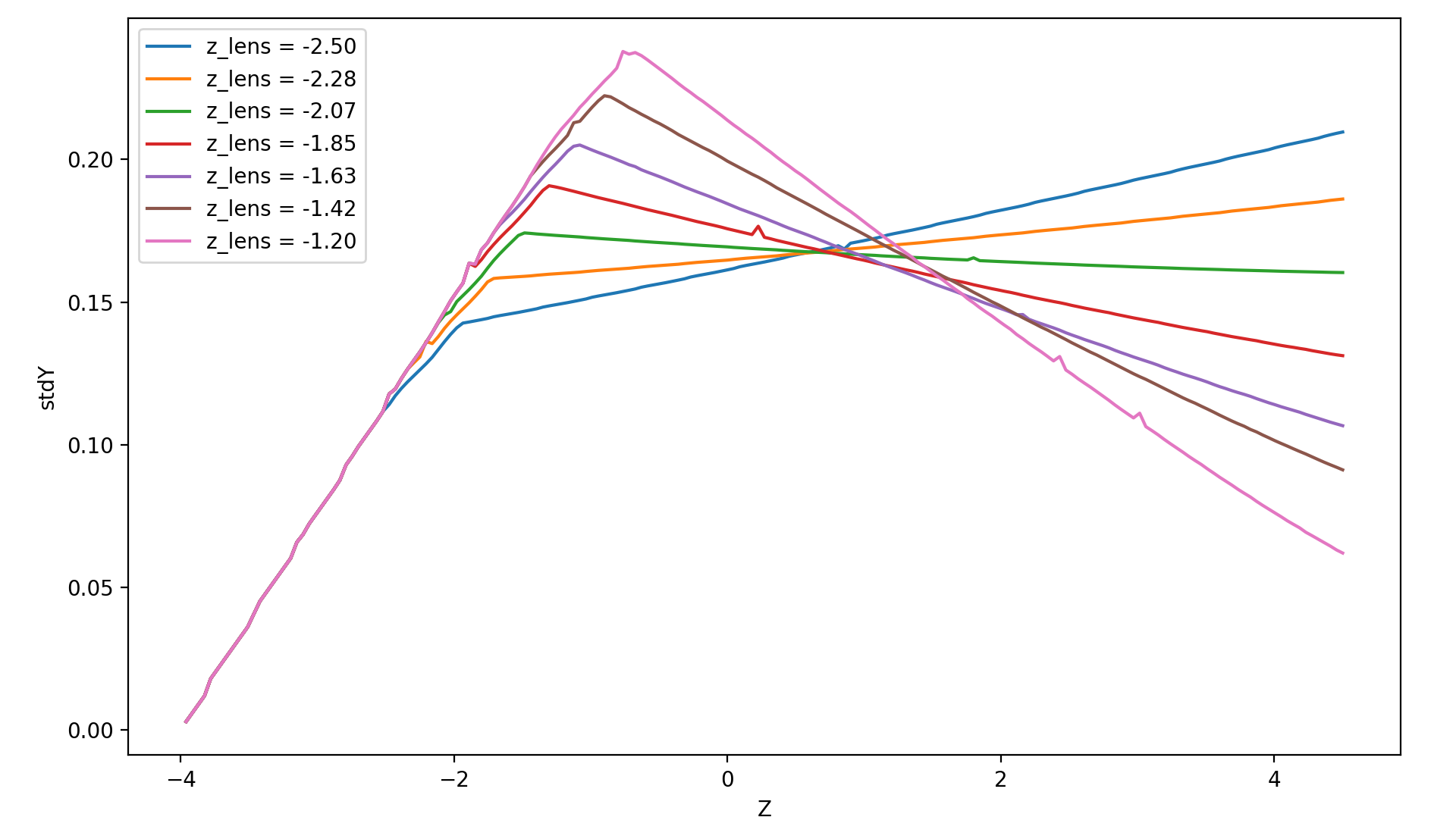

Figure 2.1: Measurement of 7 simulation points, 201 plans and 0.04 resolution.¶

Collimated output is found for a $Z$ position of $z = -2.07$. Considering theoretical focal point is at $z = -2.0$ as the source is at $z= -4.0$, we see how thin lens approximations deviates less than 5%. One can increase simulation resolution and scans more $Z$ points to find a convergent value.

Code¶

examples02.py:

import orsaytrace.trace as ot
import numpy
import matplotlib.pyplot as plt

########## SIMULATION PARAMETERS ###########

f = 2.0
lens_pos = -2.5
res = 0.04
pts = 201
sim_pts = 7

z_plans = numpy.linspace(-4.5, 4.5, pts)
z_lens = numpy.linspace(-2.5, -1.2, sim_pts)
all_my_photons = list()

for lens_pos in z_lens:

    a = ot.Simu(5, 5, 10, res)

    #Plane convex lens. Source is point source diverging.
    a.d2_source(0.0, [0, 0, -4.0], [0, 0, 1], 0.12, 11)
    a.create_thin_lens([0, 0, lens_pos], f, 1.75, 1.43, 'plane-convex')

    for z in z_plans:
        a.create_analysis_plan([0, 0, 1], z)

    #a.show_created_elements('all-noplan')
    all_my_photons.append(a.run())


results = numpy.zeros((sim_pts, pts))

for isim, simu_part in enumerate(all_my_photons):
    #a.show_elements(all_my_photons[isim], 'photons')
    for ilist, photon_list in enumerate(simu_part):
        results[isim, ilist] = (photon_list.std_position()[1])

fig, axes = plt.subplots(nrows=1, ncols=1, sharex=False, sharey=False, dpi=200)

for index, result in enumerate(results):
    axes.plot(z_plans, result, label='z_lens = ' + format(z_lens[index], '.2f'))

axes.set_xlabel('Z')
axes.set_ylabel('stdY')
plt.legend()
plt.show()

Exploring Rotation¶

This simple example shows a little more in-depth how one can visualize and explore some flexibility features of this module. In order to rotate all elements with $n_{refr} \neq 1.0$, One can use the rotation method:

>>> a.rotate(numpy.arcsin(-na), [0, 1, 0], [0, 0, zlens])

Rotation arguments can be viewed in full documentation, but it will basically rotate along axis $[0, 1, 0]$ an amount of $\theta = -arcsin(na)$ centered at $[0, 0, zlens]$, which is the center of flat surface of the lens. In order to show the flexibility of plane construction, we create a tiled plan tilted at the same angle:

>>> a.create_analysis_plan([-na, 0, 1], z)

And finally we can use a source with different normal vector as well. Do not worry about vector normalization, this is done during photon instantiation:

>>> a.d2_source(r, [0.5, 0.0, -4.5], [-na, 0, 1], 0.0, 1)

This would be roughly equivalent to a complete straight simulation. Note that rotate method is sensitive to call order. If one creates a lens after rotate, you would have a rotated and an on-axis lens. Also note that you can apply a ROI to your rotate method, selecting spatially which points to look up. This is also a less time-consuming task.

Results¶

First let us take a look at the first output. If you use ‘all’ in show_elements, plan inspection is activated.

_images/Example03_res0-05_other_view.png

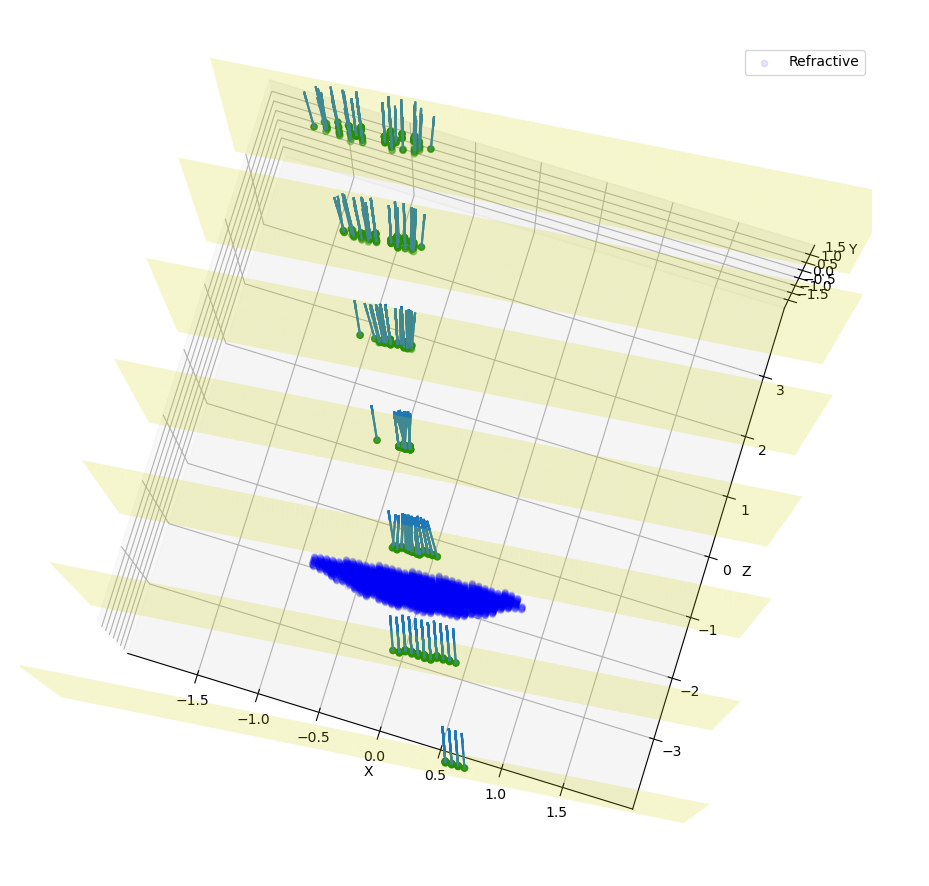

Figure 3.1: Measurement of a rotated source, lens and planes. 7 plans and a resolution of 0.05.¶

Rotation of all objects can be clearly seen, but a few photons also looks a little bit misplaced. This happens because rotation is a tricky transformation in a mesh. You need to rotate both the point and normal which not always corresponds to exactly same absolute values due to finite volume of each grid cube.

A way of reducing dramatically this problem without the need of increasing resolution, is by using conditional plans. As ‘refraction_count’ and ‘reflection_count’ are photon attributes, you can pass them as a keyword argument. Check full documentation for more info. To use this feature, one simply:

>>> a.create_analysis_plan([-na, 0, 1], z, refraction_count=(1, 2))

This will restrain to photons that have refracted $1\leq ct_{rf}\leq 2$. Result of this simulation is shown in Figure 3.2. Note how plans before the lens have no photons because they have not already found a refractive (or reflective) element.

$_images/Example03_res0-05_other_view_refraction_count.png$

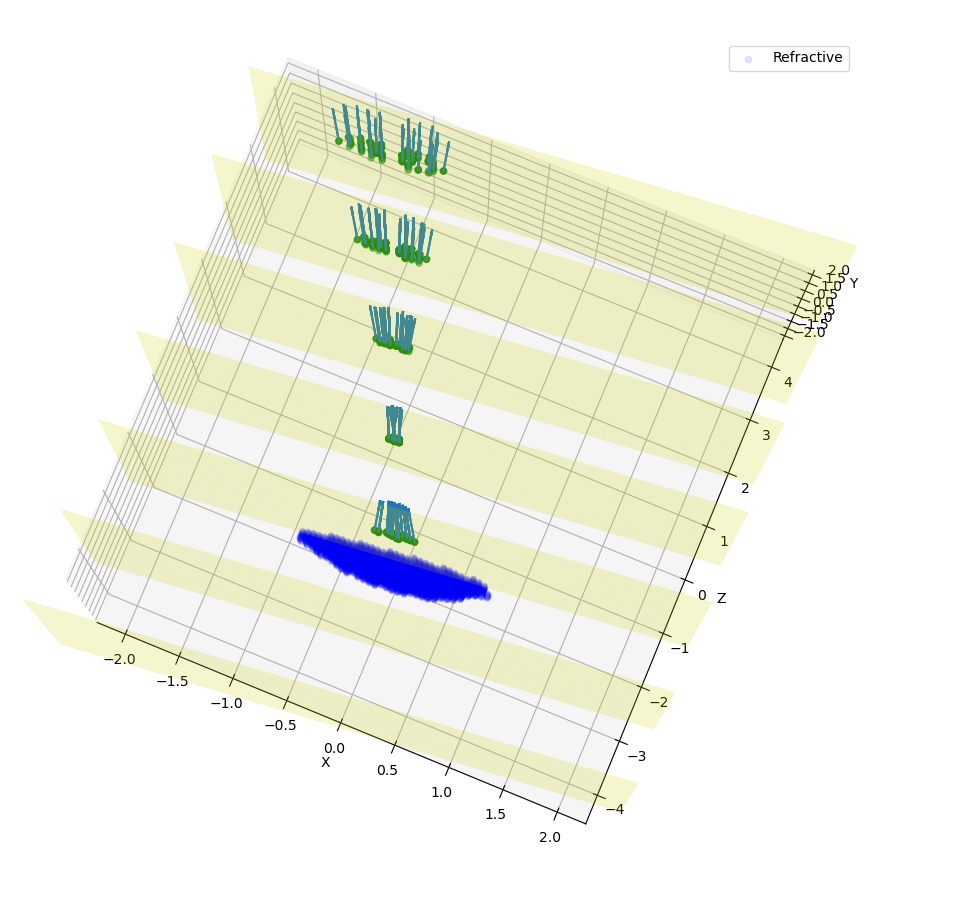

Figure 3.2: Measurement of a rotated source, lens and conditional planes. Resolution is 0.05.¶

Finally, if we hide plans inspection and turn simulation for much more plans, we would see:

$_images/Example03_res0-04_other_view_refraction_count_51_planes.png$

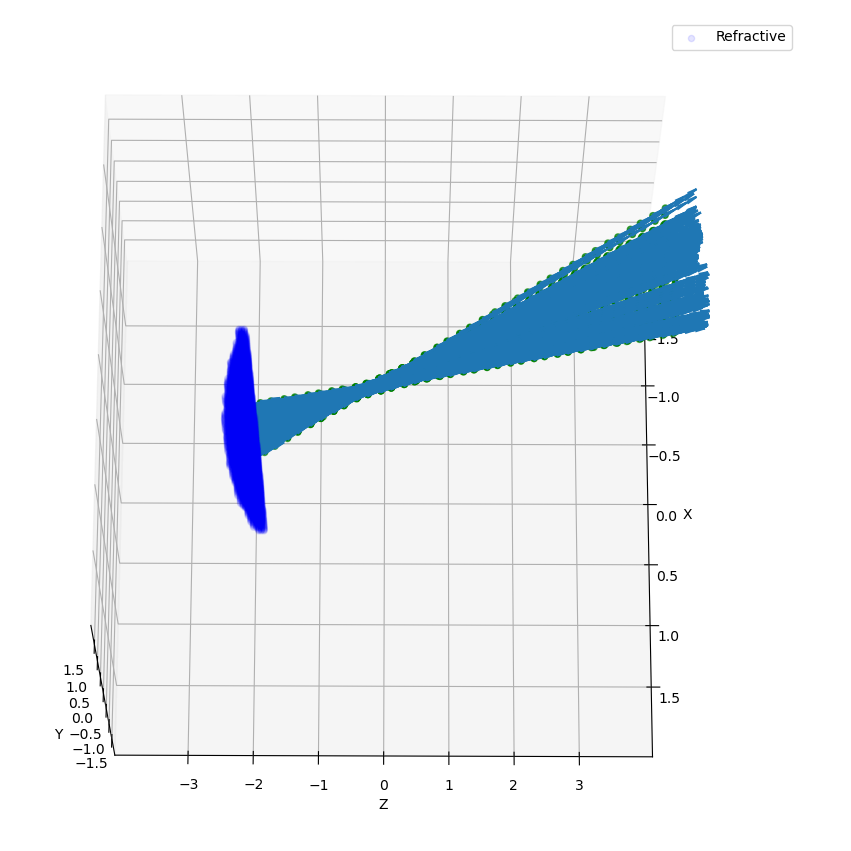

Figure 3.3: Measurement of a rotated source, lens and conditional planes. Resolution is 0.05.¶

Code¶

example03.py:

import orsaytrace.trace as ot
import numpy
import matplotlib.pyplot as plt

z_array = numpy.linspace(-4.5, 4.5, 51)
res = 0.04

focus = 2.0
zlens = -2.0
r = 0.25
na = 0.2

# This example simple shows how to apply rotation to itens

a = ot.Simu(5, 5, 10, res)

a.d2_source(r, [0.5, 0.0, -4.5], [-na, 0, 1], 0.0, 1)
a.create_thin_lens([0, 0, zlens], focus, 1.5, 1.43, 'convex-plane')
a.rotate(numpy.arcsin(-na), [0, 1, 0], [0, 0, zlens])

for z in z_array:
    a.create_analysis_plan([-na, 0, 1], z, refraction_count=(1, 2))

photon_lists = a.run()
a.show_elements(photon_lists, 'all-noplan')
#a.show_elements(photon_lists, 'all')

div_z = numpy.asarray([])
div_tilted = numpy.asarray([])
for photon_list in photon_lists:
    div_z = numpy.append(div_z, photon_list.avg_divergence([0, 0, 1]))
    div_tilted = numpy.append(div_tilted, photon_list.avg_divergence([-na, 0, 1]))

fig, axes = plt.subplots(nrows=1, ncols=2, sharex=False, sharey=False)
axes[0].plot(z_array, div_z)
axes[1].plot(z_array, div_tilted)

axes[0].set_ylabel('Beam Divergence')
axes[1].set_ylabel('Beam Divergence')

axes[0].set_xlabel('Z (A.U.)')
axes[1].set_xlabel('Z (A.U.)')

plt.show()

Other Geometries¶

In this example, we study how a collimated source behaves when reflected by a off-axis parabolic mirror. The idea is to construct a parabolic surface and remove its upper part using a rectangular element.

At the beginning, we define a few constants that are important in order to understand the problem. Focus is the distance, in $Y$ direction, of the top of the parabolic surface to its vertex. yvertex is the $Y$ vertex position. Source is at $[0, 0, -5]$, which means source center in $Z$ axis is arriving in the lower bottom part of the mirror.

We have created several plans in $Y$ direction with the condition of a minimal of one reflection:

>>> for y in y_array:
>>>    a.create_analysis_plan([0, 1, 0], y, reflection_count = 1)

In this example, several built-in functions available to photon_list class have been used. New functions relative to previous examples are:

>>> photon_list.get_average_weighted_inverse()
>>> photon_list.get_average_weighted_inverse_axis_y([0, -p/2.])

The first computes the weighted inverse distance of each photon relative to average photon position. Second function computes the weighted inverse distance relative to a given point; in this case, we have used point in $X\times Z$ plan $[0, -p/2]$. As we know from a parabola, this is its focal point.

Note

The weight in those functions comes from intensity photon attribute. By default, they are equal to a unity and means we are basically counting photons. It is easy to run a loop over the initial photon list and change its intensity based on another attribute, such as photon position.

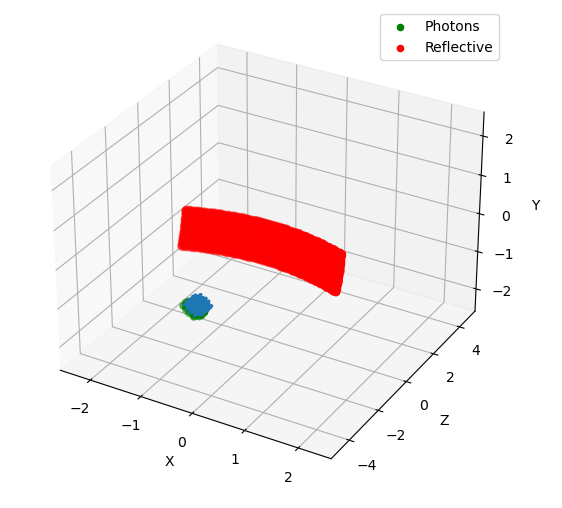

Figure 4.1: Simulation starting conditions using a resolution of 0.05.¶

Figures 4.1 explains our simulation initial conditions. Photons arrive with no divergence and converges to the parabola focal point. In order to examine this problem, we will plot position average and standard deviation for $X \times Z$ coordinates. We will also calculate the inverse of the distance using two reference points, as explained before.

In practice, first weighted inverse (from average position) is a moving point. It goes along photons center of mass and we will see it propagating when we plot the average for $X \times Z$ coordinates. Second weighted inverse is a static point. We will discuss the meaning of it in results.

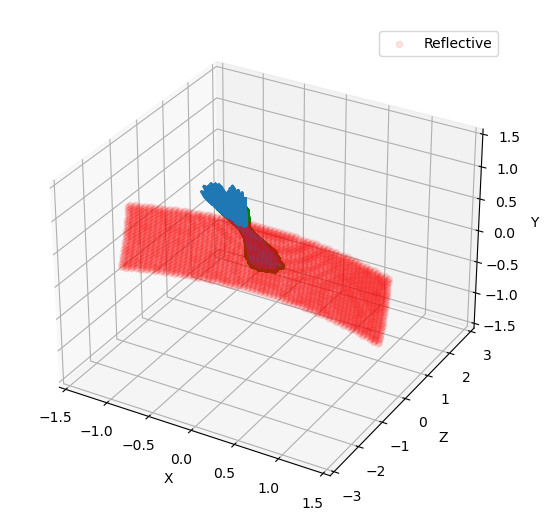

Figure 4.2: Simulation end point using a resolution of 0.05.¶

As we will se in results, we have also performed rotation measurements. Rotation method checks for active grid point, such as $n_{refr} \neq 1$. It is an expensive method because it does not know previous what the user have added to the grid. In this sense, we can perform smarter rotations if you understand your problem. In this case, we have done a rotation using the ROI correspondent to incident photons.

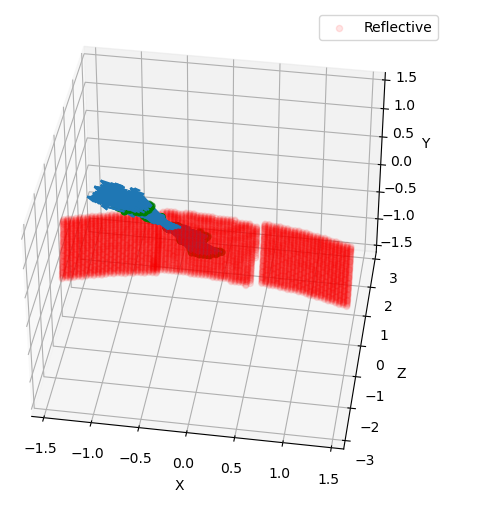

Figure 4.3: Rotation regions was not performed in the whole parabolic mirror.¶

Results¶

First simulation was done using a straight mirror, with no tilt $\theta = 0 ^{\circ}$. Figure 4.4 shows several expected results. $X$ average (top left) does not change during beam propagation, while $Z$ became more and more negative, meaning beam has a reflective component that faces the initial source. Standard deviation in top center shows we have an non-astigmatic source and both $X$ and $Z$ focus at the same point. Top right shows that beam has an much more smaller apparent depth of focus in $Y$ axis with respect to its focal point when compared to propagation axis (not aligned with $Y$ axis).

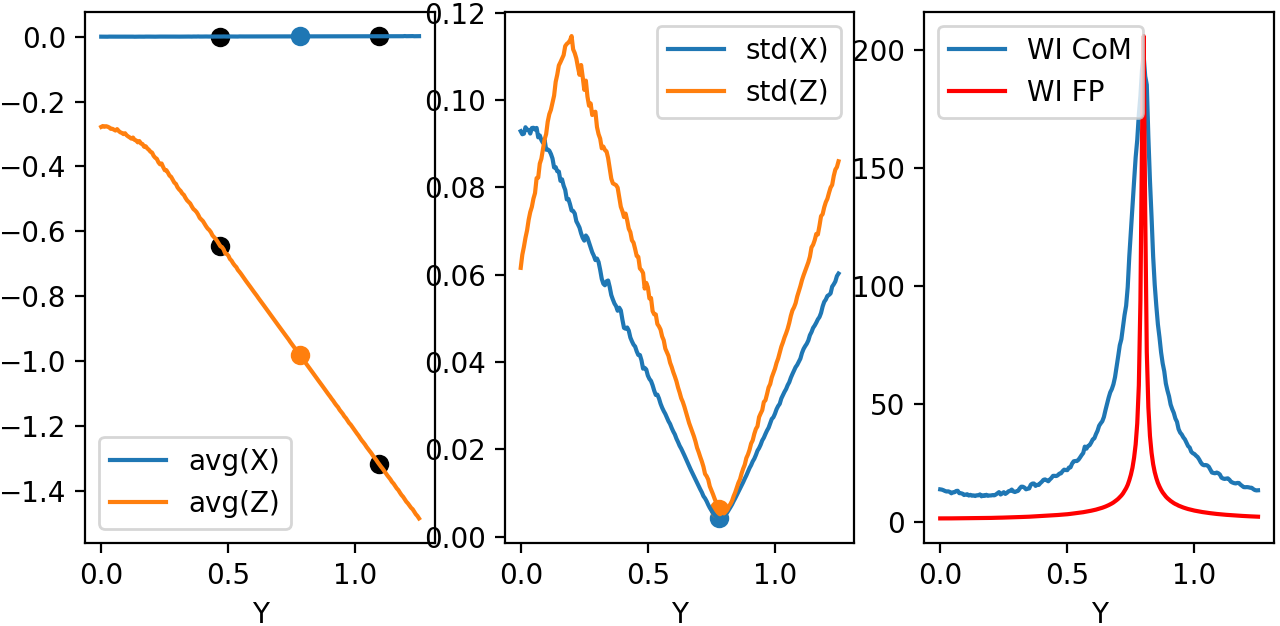

Figure 4.4: Left: Average position for X-Z. Center: Standard deviation for X-Z. Right: Weighted inverse for center of mass and for parabola focal point.¶

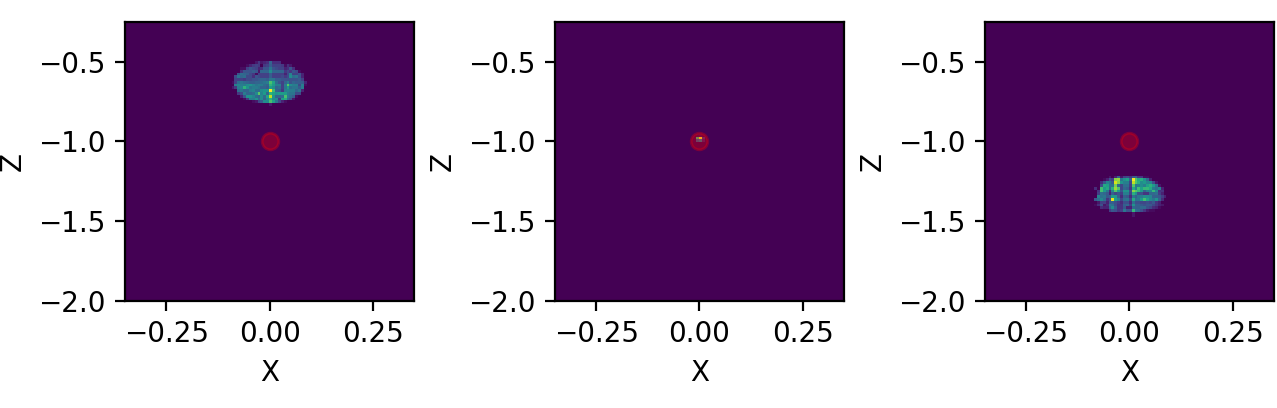

Figure 4.5 shows snapshots of beam in $3$ different $Y$ planes, where the center one is defined by the minimum of the standard deviation (focal point). We see focal point corresponds to $(X, Z) = (0, -p/2)$. We also see that beam propagates somewhat with a elliptical shape.

Figure 4.5: Three distinct snapshots of the beam propagating in Y direction. Position are relative to the black dots shown in previous average figure.¶

In Figure 4.6, we have used animation module present in the standard matplotlib library to produce an animated image .gif:

>>> from matplotlib.animation import FuncAnimation, PillowWriter

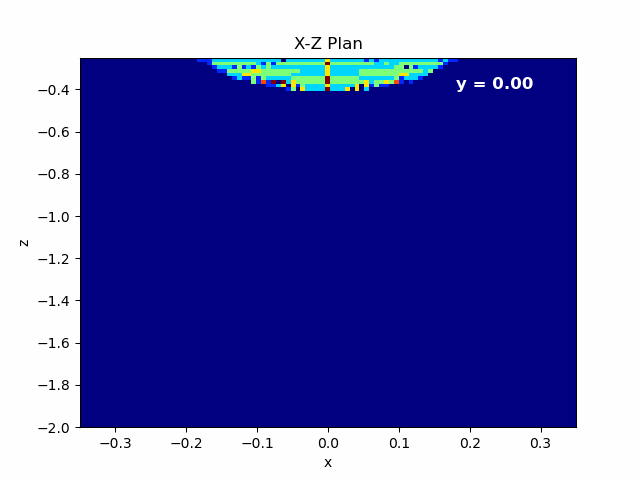

Figure 4.6: Left: Animation of X-Z plane of the beam propagating in Y axis.¶

In order to check the effect of mirror tilting, we added a $\theta = \frac{\pi}{64} \approx 2.8^{\circ}$ with respect to the $[0, 1, 0]$ direction, as shown in Figure 4.3. Beam does not cross $(x, z) = (0, -p/2)$ simply because rotation changed focal point. Using centroid we see weighted inverse does not change much. Source is still non-astigmatic with respect to $Y$ axis.

_images/Example04_res0-01_tilted_pi-64.png

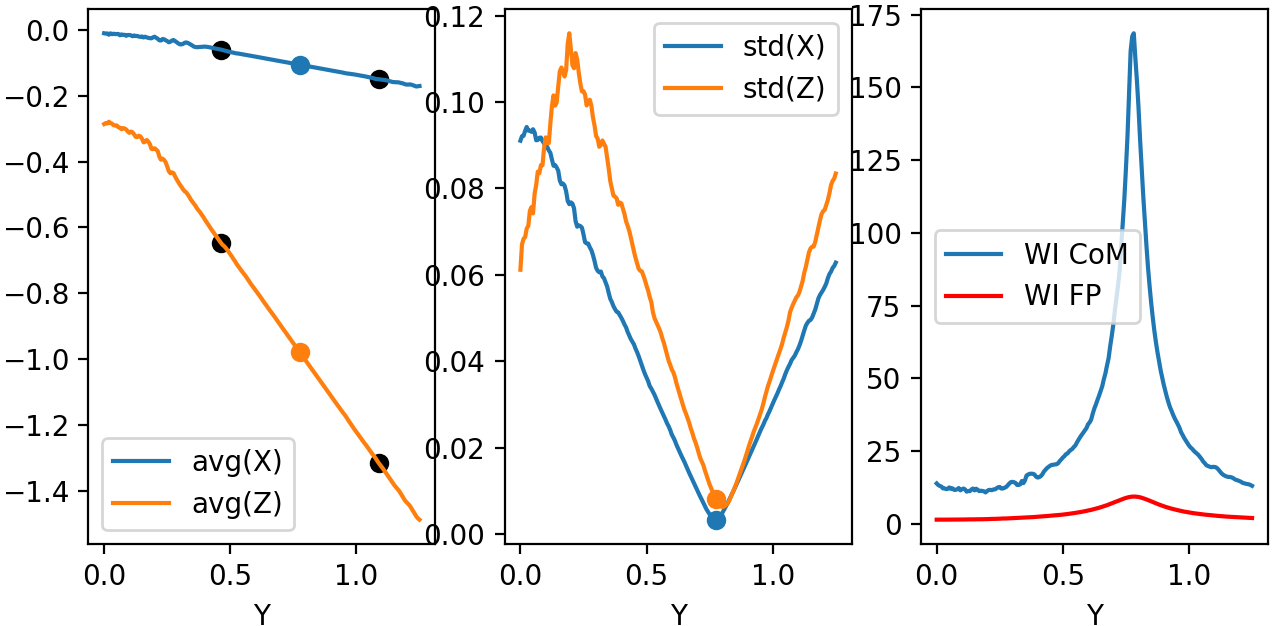

Figure 4.7 Left: Average position for X-Z. Center: Standard deviation for X-Z. Right: Weighted inverse for center of mass and for parabola focal point. Beam rotated with respect to Y.¶

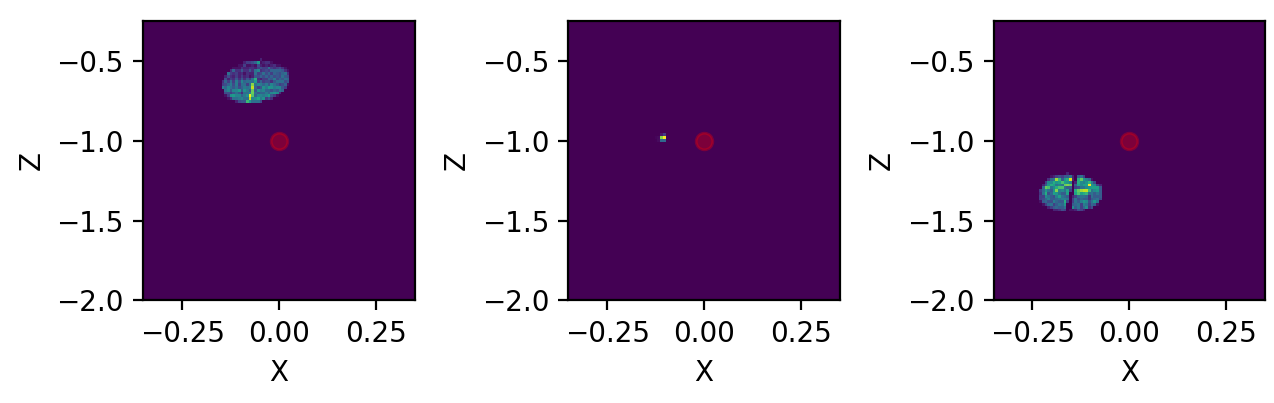

Snapshots show that beam is propagating in $X$ axis as well, as expected by a rotation in this direction. Center of mass $Z$ propagation is pretty much the same.

_images/Example04_res0-01_02_tilted_pi-64.png

Figure 4.8: Three distinct snapshots of the beam propagating in Y direction. Positions are relative to the black dots shown in previous average figure. Beam rotated with respect to Y.¶

Finally, we can also export a .gif animation in order to see beam propagation.

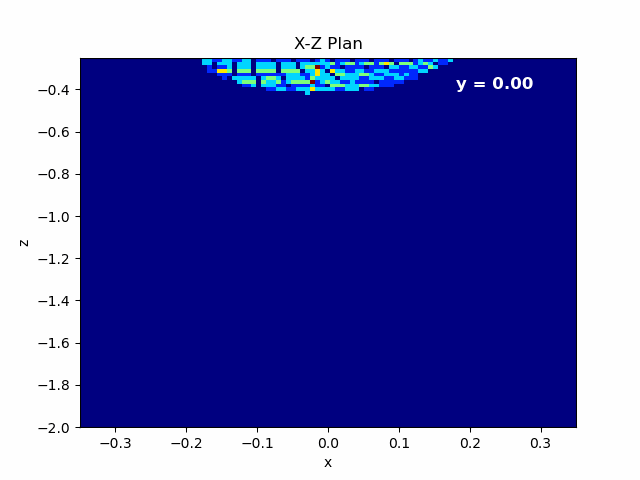

_images/Example04_res0-01_pi-64_tilted.gif

Figure 4.9: Left: Animation of X-Z plane of the beam propagating in Y axis. Beam rotated with respect to Y.¶

Let us add a $\theta = \frac{\pi}{16} \approx 11.2^{\circ}$ rotation along $X$ axis. Results interpretation is pretty much the same as we did in the last two examples. Beam is now propagating more closely to a $\theta = \frac{\pi}{2}$ trajectory, so $Z$ propagation reduces dramatically. For this example, analyses plans were slightly modified. We have used a higher portion of $Y$ semi space and double of points:

>>> y_array = numpy.linspace(0, y/3, 401)

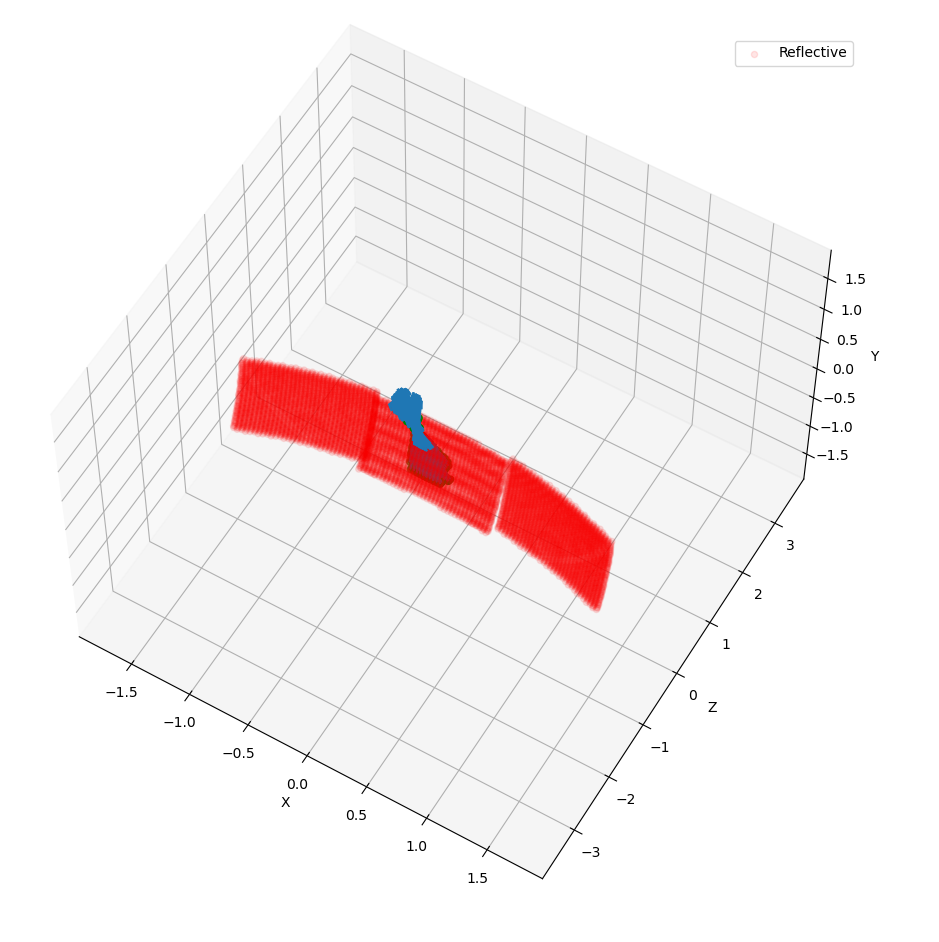

Figure 4.10 Beam rotated with respect to X.¶

First it is important to note how the beam now looks very astigmatic,

_images/Example04_res0-01_tilted_pi-16-X-axis.png

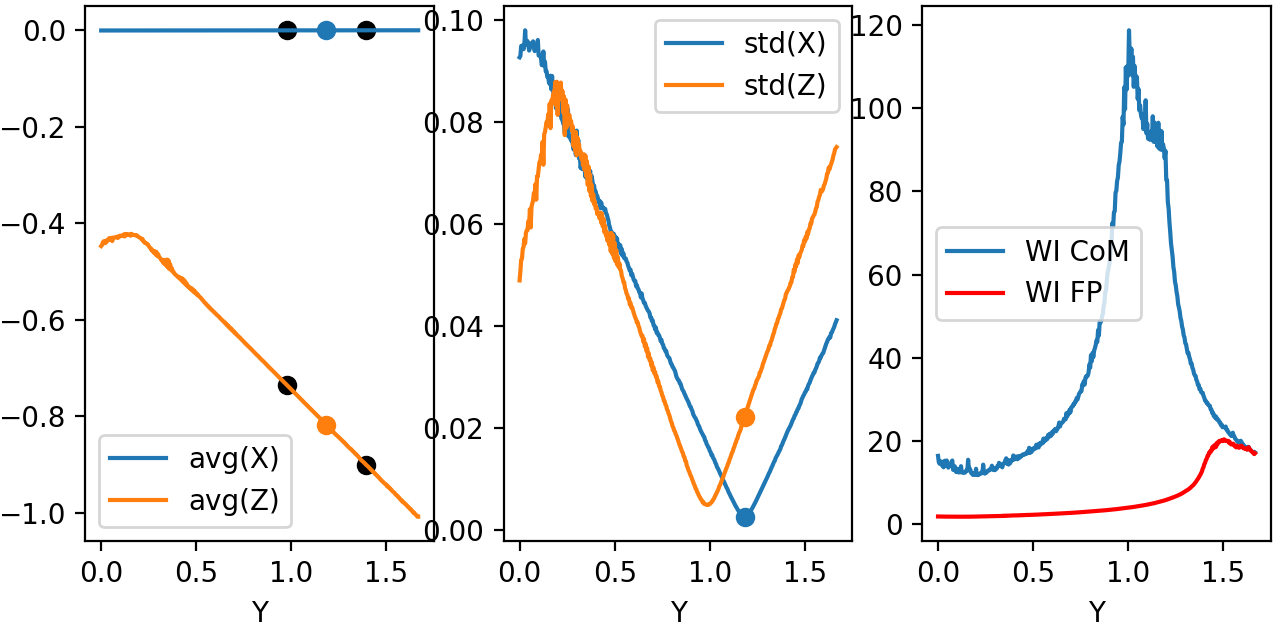

Figure 4.11 Left: Average position for X-Z. Center: Standard deviation for X-Z. Right: Weighted inverse for center of mass and for parabola focal point. Beam rotated with respect to X.¶

Snapshots show that beam is propagating less in $Z$. Beam is symmetric relative to $X$ (divergence smaller than resolution).

_images/Example04_res0-01_02_tilted_pi-16-X-axis.png

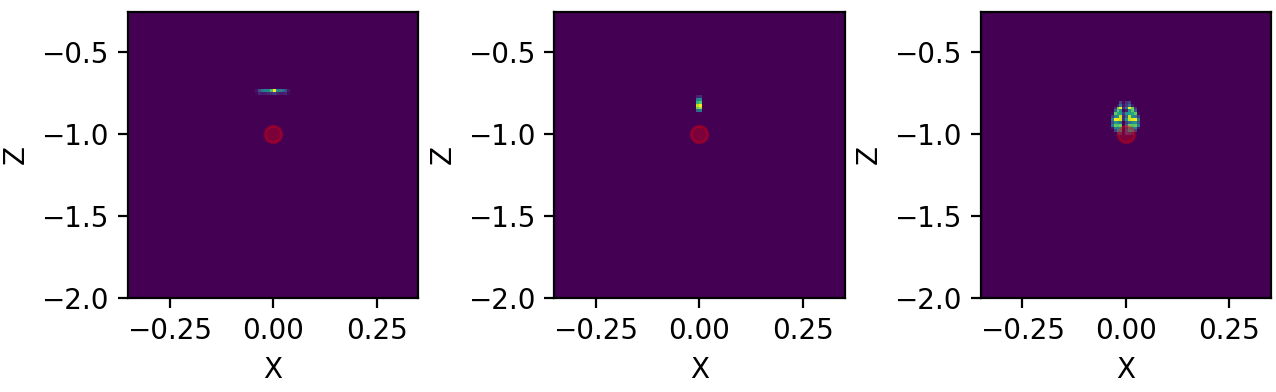

Figure 4.12: Three distinct snapshots of the beam propagating in Y direction. Position are relative to the black dots shown in previous average figure. Beam rotated with respect to X.¶

If we export a .gif animation in order to see beam propagation, we have the following

_images/Example04_res0-01_pi-16_tilted-X-axis.gif

Figure 4.13: Left: Animation of X-Z plane of the beam propagating in Y axis. Beam rotated with respect to X.¶

Code¶

example04.py:

import orsaytrace.trace as ot
import numpy
import matplotlib as mpl
mpl.use('TkAgg')
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation, PillowWriter

x, y, z, res = 5, 5, 10, 0.04

focus = 0.3
yvertex = 0.8
thickness = 1.2
p = 2.0
r = 0.2

xmax, xmin, zmax, zmin = 0.35, -0.35, -0.25, -2.0

y_array = numpy.linspace(0, y/4, 201)

a = ot.Simu(x, y, z, res)

a.d2_source(r, [0, 0, -z/2], [0, 0, 1], 0.0, 1)

a.create_parabolic_surface_element([0.0, yvertex, 0.0], -1.0, 2*thickness, 3.0, p)
a.create_rectangle_element([-x/2, x/2, yvertex-focus, y/2, -z/2, z/2], 1.0, [0, 0, 0])
#a.rotate(numpy.pi/64, [0, 1, 0], [0, yvertex, 0.0], [-0.5, 0.5, -0.5, 0.5, -2.0, 0])

for y in y_array:
    a.create_analysis_plan([0, 1, 0], y, reflection_count = 1)

#a.show_created_elements('all-noplan')
photon_lists = a.run()
#a.show_elements(photon_lists, 'all-noplan')

pd = numpy.asarray([photon_list.get_average_weighted_inverse() for photon_list in photon_lists])
pdvertex = numpy.asarray([photon_list.get_average_weighted_inverse_axis_y([0, -p/2.])for photon_list in photon_lists])
avg = numpy.asarray([photon_list.avg_position() for photon_list in photon_lists])
pos_max = numpy.asarray([photon_list.max_position() for photon_list in photon_lists])
pos_min = numpy.asarray([photon_list.min_position() for photon_list in photon_lists])
std = numpy.asarray([photon_list.std_position() for photon_list in photon_lists])


list_number = (numpy.where(std[:, 0]==min(std[:, 0])))[0][0]
fac = 50

fig, axes = plt.subplots(nrows=1, ncols=3, sharex=False, sharey=False, dpi=200)
axes[0].plot(y_array, avg[:, 0], label='avg(X)')
axes[0].scatter(y_array[list_number], avg[list_number, 0])
axes[0].plot(y_array, avg[:, 2], label='avg(Z)')
axes[0].scatter(y_array[list_number], avg[list_number, 2])

axes[0].scatter(y_array[list_number-fac], avg[list_number-fac, 0], c='black')
axes[0].scatter(y_array[list_number+fac], avg[list_number+fac, 0], c='black')
axes[0].scatter(y_array[list_number-fac], avg[list_number-fac, 2], c='black')
axes[0].scatter(y_array[list_number+fac], avg[list_number+fac, 2], c='black')

axes[0].set_xlabel('Y')
axes[0].legend()

axes[1].plot(y_array, std[:, 0], label='std(X)')
axes[1].scatter(y_array[list_number], std[list_number, 0])
axes[1].plot(y_array, std[:, 2], label = 'std(Z)')
axes[1].scatter(y_array[list_number], std[list_number, 2])
axes[1].set_xlabel('Y')
axes[1].legend()

axes[2].plot(y_array, pd, label='WI CoM')
axes[2].plot(y_array, pdvertex, label='WI FP', c='red')
axes[2].set_xlabel('Y')
axes[2].legend()
plt.show()

lists_pos = numpy.asarray([photon_list.get_positions() for photon_list in photon_lists])

fig, axes = plt.subplots(nrows=1, ncols=3, sharex=False, sharey=False, dpi=200)
axes[0].hist2d(lists_pos[list_number-fac][:, 0], lists_pos[list_number-fac][:, 2], 100, range=[[xmin, xmax], [zmin, zmax]])
axes[1].hist2d(lists_pos[list_number][:, 0], lists_pos[list_number][:, 2], 100, range=[[xmin, xmax], [zmin, zmax]])
axes[2].hist2d(lists_pos[list_number+fac][:, 0], lists_pos[list_number+fac][:, 2], 100, range=[[xmin, xmax], [zmin, zmax]])

axes[0].scatter([0], [-p/2], c='red', alpha=0.3)
axes[1].scatter([0], [-p/2], c='red', alpha=0.3)
axes[2].scatter([0], [-p/2], c='red', alpha=0.3)

axes[0].set_xlabel('X'); axes[0].set_ylabel('Z')
axes[1].set_xlabel('X'); axes[1].set_ylabel('Z')
axes[2].set_xlabel('X'); axes[2].set_ylabel('Z')
plt.show()


fig, ax = plt.subplots()
plt.hist2d(lists_pos[0][:, 0], lists_pos[0][:, 2], 101, range=[[xmin, xmax], [zmin, zmax]])

def init():
    pass

def update(i):
    plt.clf()
    plt.hist2d(lists_pos[int(i)][:, 0], lists_pos[int(i)][:, 2], 101, range=[[xmin, xmax], [zmin, zmax]],
               cmap=plt.cm.jet)
    plt.text(0.18, -0.4, 'y = '+format(y_array[i], '.2f'), fontsize=12, color='white', weight='bold')
    plt.xlabel('x')
    plt.ylabel('z')
    plt.title('X-Z Plan')
ani = FuncAnimation(fig, update, range(len(y_array)), init_func=init)

writer = PillowWriter(fps=40)
ani.save("demo_parabolic.gif", writer=writer)

Multi Processing¶

In this example, we show how can one use python standard library multiprocessing in order to perform simulations using multiple processes. User must call a few methods in order to enable them. First one is:

>>> prepare_acquisition(nproc)

Which splits your initial photons in nproc number of equal divisions. Each one of those subsets will be run in a different process.

Note

Calling run function will always call prepare_acquisition object. If no multiprocessing is used, nproc = 1 and photon list is identical to initial photon list.

Second step is to use the Manager() object from multiprocessing library. In this example we will use a dict type in order to callback to our main function the results from our simulation. An example on how to do it is simply:

>>> manager = multiprocessing.Manager()
>>> return_dict = manager.dict()
>>> jobs = []
>>> for i in numpy.arange(0, nproc)
>>>     p = multiprocessing.Process(target=a.run, args=(i, True, return_dict))
>>>     jobs.append(p)
>>>     p.start()

In this case we created a list called jobs with all our processes and started them all using p.start(). return_dict - our manager.dict() is passed as an argument. Run function deals with this values copying its the habitual return function in return_dict.

Note

Currently run function only supports return_dict from type multiprocessing.managers.DictProxy. Please fell free to improve this approach in our GitHub repository.

The third part is to call merge_photon_lists using the values retrieved by our return dict. In order to wait for results, you can call join() before. This way you guarantee process is over and added values are meaningful ones:

>>> for index, proc in enumerate(jobs):
>>>     proc.join()
>>>     a.merge_photon_lists(return_dict.values()[index])

Please be careful to do not call this function several times. There is no way to check if the photon has been already added to the list or not at the moment. Calling several times will add repeated photons to your main photon_lists. If user want to see each subset of photon that was ran by an specific process, one can use:

>>> show_elements(return_dict.values()[index], 'all-noplan-verbose')

In which -verbose prints in the terminal the number of photons in each plan. You can see that if you run the same code at the end after merge_photon_lists, your number of photons will be the sum of each individual core.

Results¶

In Figure 5.1, we compare a small/medium sized simulation in three different conditions. First two uses the same computer and processor, but running different operational systems. The machine has a Intel I7-8665U processor with 32 Gb of RAM (RAM was not a limiting factor here). Second machine uses two 12 core (24 thread) Intel Xeon Silver 4214 processor with 200 Gb RAM using windows 10 as an OS. It is a dedicated computer to perform heavy simulations.

Simulation were done using a $(5, 5, 5)$ cell with $0.05$ resolution. $30$ analyses plans were put and a point source spawned angles with $na = 0.39$ within $101$ angles. All photons were merged at simulation end and time shown is that total time calculated using:

>>> from time import perf_counter

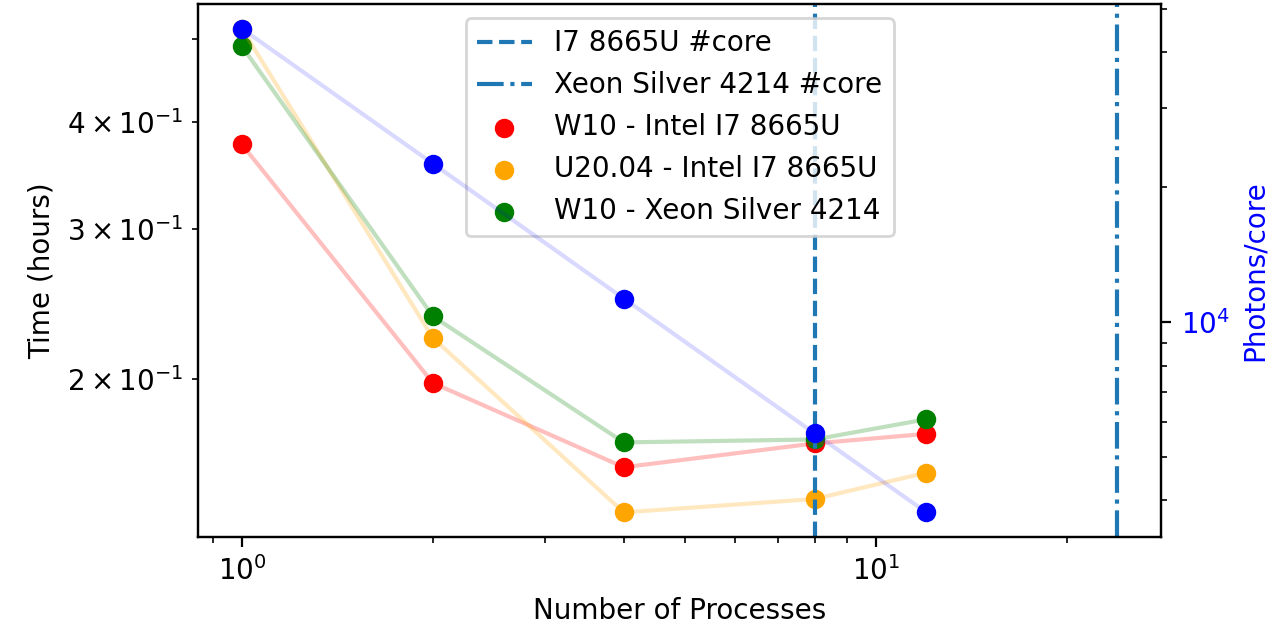

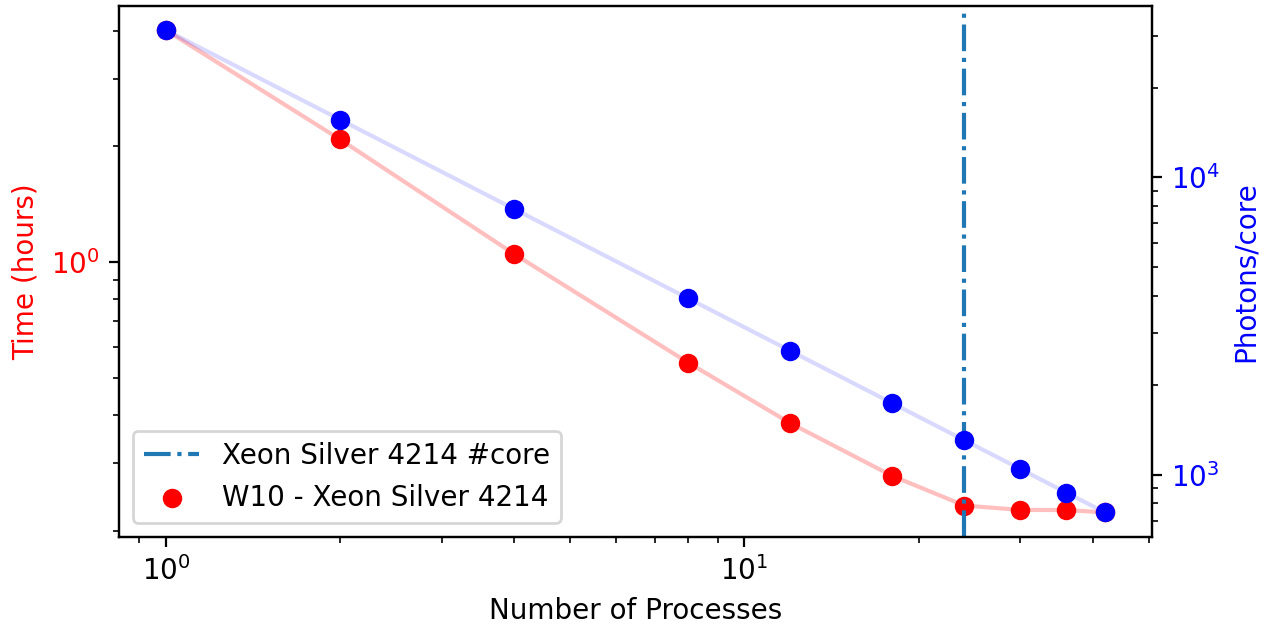

Figure 5.1: Performance with different machine conditions. We have compared a Intel i7 8665U and a Intel Xeon Silver 4214 processors running Windows 10 OS. Ubuntu 20.04 was also compared to Windows 10.¶

We readily see that Intel Xeon 4214 loses to both other conditions. For single core, there is no reason they differ much, as processor core frequency are similar for both processors. Intel i7 running W10, however, shows a better performance due to its turbo maxi of $4.80 Ghz$ when using a single core. For 2-4 cores, linux appears to be the best between them all, probably due to the differences in starting process between Unix and Windows.

Code¶

example05.py:

import orsaytrace.trace as ot
import numpy
import multiprocessing
import time

for nproc in [1, 2, 4, 8, 12]:
    if __name__ == "__main__":

        x, y, z, res = 5, 5, 5, 0.05
        z_array = numpy.linspace(-z / 4, +z / 4, 30)
        angles = 2

        start = time.perf_counter()

        manager = multiprocessing.Manager()
        return_dict = manager.dict()
        a = ot.Simu(x, y, z, res)

        a.d2_source(0.0, [0, 0, -z/4], [0, 0, 1], 0.39, angles)

        for z in z_array:
            a.create_analysis_plan([0, 0, 1], z)

        a.prepare_acquisition(nproc)

        jobs = []
        for i in numpy.arange(0, nproc):
            p = multiprocessing.Process(target=a.run, args=(i, True, return_dict))
            jobs.append(p)
            p.start()

        for index, proc in enumerate(jobs):
            proc.join()
            a.merge_photon_lists(return_dict.values()[index])

        end = time.perf_counter()

        f = open('mp.txt', 'a+')
        f.write(str(angles) + '_' + str(nproc) + '_' + str(end - start)+ '\n')
        f.close()
